Tutorial

The easiest way to use this pipeline is to run it in a Google Colab notebook. You can do so by using the “Open in Colab” button in the readme.md file.

Load the sequences and install dependencies

!pip install biopython
from Bio import SeqIO
sequences = list(SeqIO.parse("sequences.fna", "fasta"))

This code installs BioPython, imports the SeqIO module, and loads all sequences from a FASTA file (sequences.fna) into a list of SeqRecord objects. Each SeqRecord contains sequence data and metadata like ID and description.

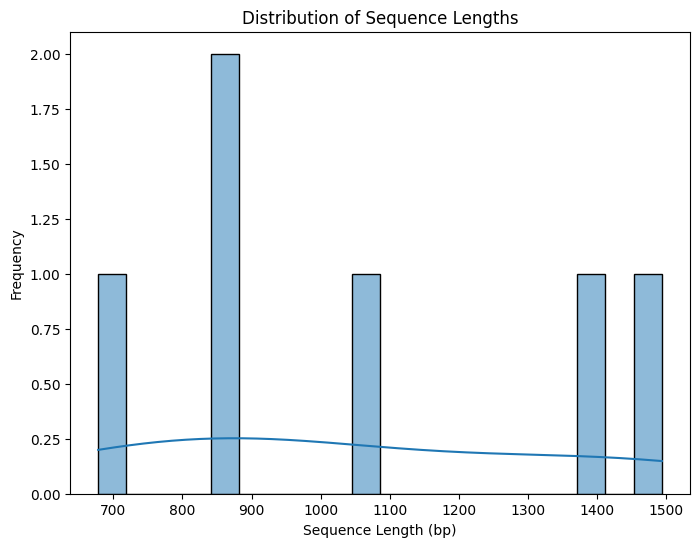

Calculate sequence length and GC content

# Histogram of Sequence Lengths
plt.figure(figsize=(8, 6))
sns.histplot(sequence_df["Length"], bins=20, kde=True)
plt.title("Distribution of Sequence Lengths")
plt.xlabel("Sequence Length (bp)")
plt.ylabel("Frequency")
plt.show()

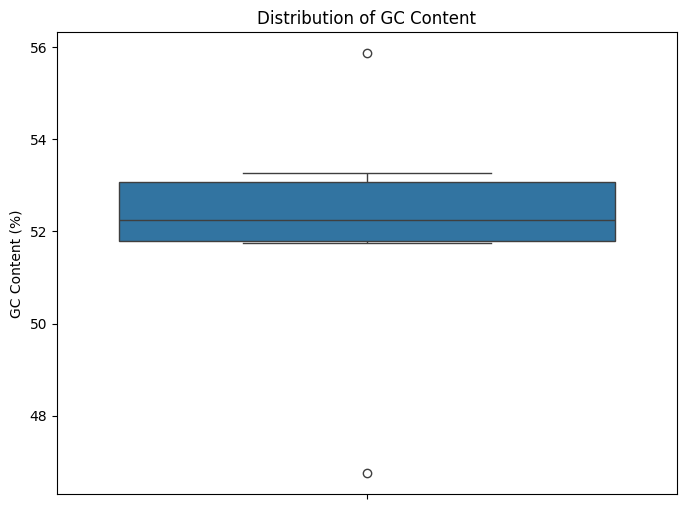

# Boxplot of GC Content
plt.figure(figsize=(8, 6))
sns.boxplot(y=sequence_df["GC Content"])
plt.title("Distribution of GC Content")
plt.ylabel("GC Content (%)")
plt.show()

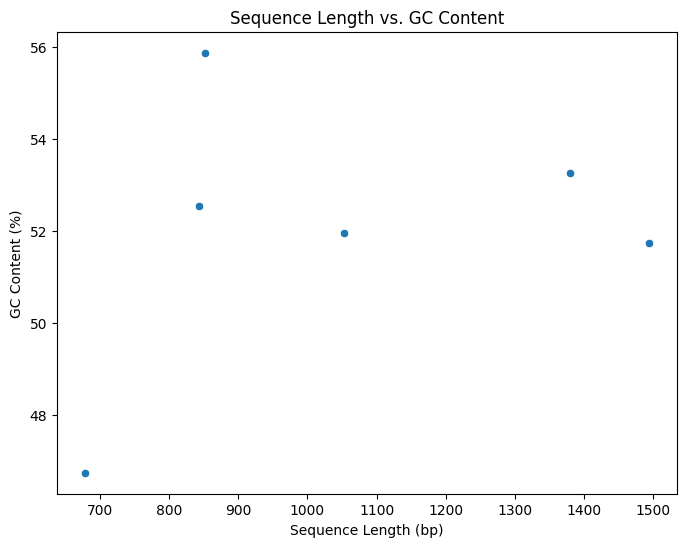

# Scatterplot: Length vs. GC Content
plt.figure(figsize=(8, 6))
sns.scatterplot(x="Length", y="GC Content", data=sequence_df)
plt.title("Sequence Length vs. GC Content")
plt.xlabel("Sequence Length (bp)")
plt.ylabel("GC Content (%)")
plt.show()

Sequence length and GC content are calculated and plotted.

Image 1 Image 2 Image 3

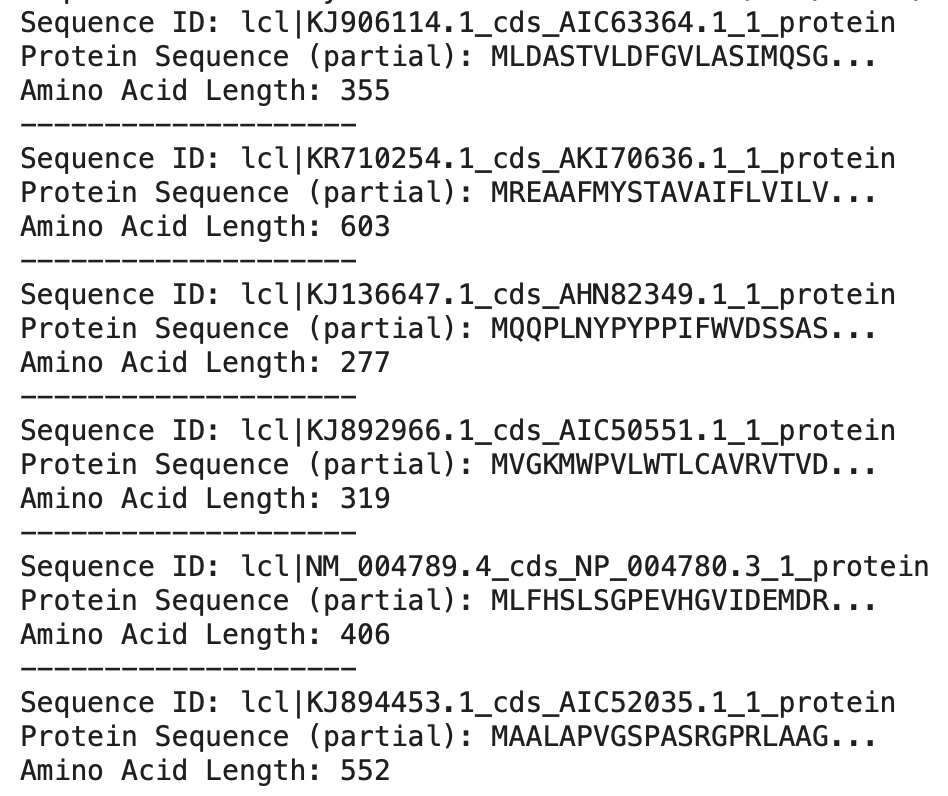

Protein sequence prediction

This code iterates through protein records, displaying:

  • Sequence identifier
  • First 20 amino acids of the sequence
  • Total sequence length
for protein_record in protein_records:
    print(f"Sequence ID: {protein_record.id}")
    print(f"Protein Sequence (partial): {protein_record.seq[:20]}...")  # Print first 20 amino acids
    print(f"Amino Acid Length: {len(protein_record.seq)}")
    print("-" * 20)  # Separator

Image 4

Align sequences with Clustal

The code performs multiple sequence alignment using Clustal Omega, a widely-used alignment tool known for its accuracy and efficiency.

clustalomega_cline_nucleotide = ClustalOmegaCommandline(
    cmd=clustalo_path,
    infile="nucleotide_sequences.fasta",
    outfile="nucleotide_sequence_alignment.fna",  # Output file for nucleotide alignment
    verbose=True,
    auto=True,
    force=True
)
clustalomega_cline_nucleotide()

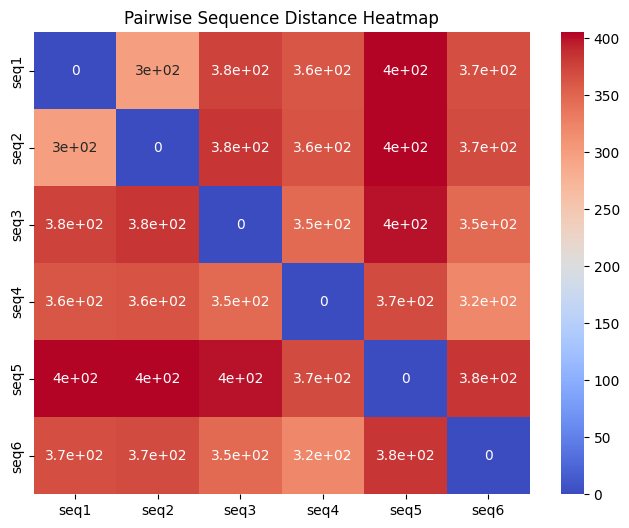

Generate a pairwise sequence heatmap

The code then generates a pairwise sequence similarity heatmap to visualize the relationships between sequences. Image 5

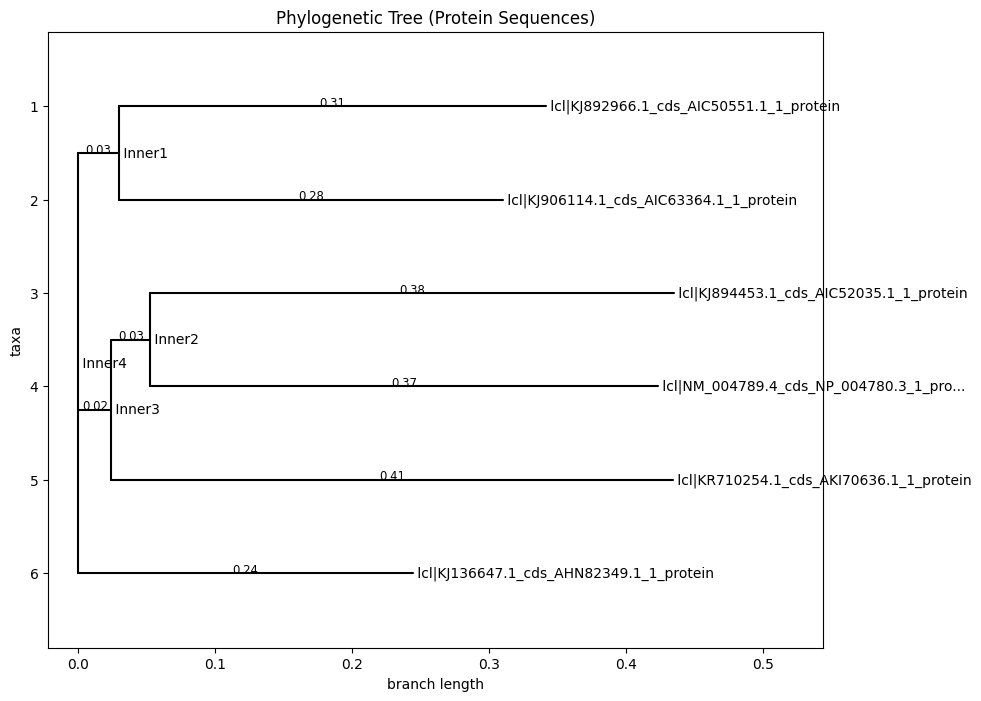

Create a phylogenetic tree

Based on the multiple sequence alignment, we construct a phylogenetic tree to infer evolutionary relationships. Image 6

Perform BLAST searches

To identify homologous sequences in public databases, we perform BLAST (Basic Local Alignment Search Tool) searches against the NCBI non-redundant (nr) protein database.

# Step 2: Perform BLAST Search for Each Sequence
for seq_id, sequence in protein_sequences.items():
    print(f"Running BLAST for {seq_id}...")
    result_handle = NCBIWWW.qblast("blastp", "nr", sequence)  # BLASTP against NCBI nr database
    with open(f"{seq_id}_blast.xml", "w") as out_file:
        out_file.write(result_handle.read())  # Save results to XML
    time.sleep(2)  # Avoid spamming NCBI servers
